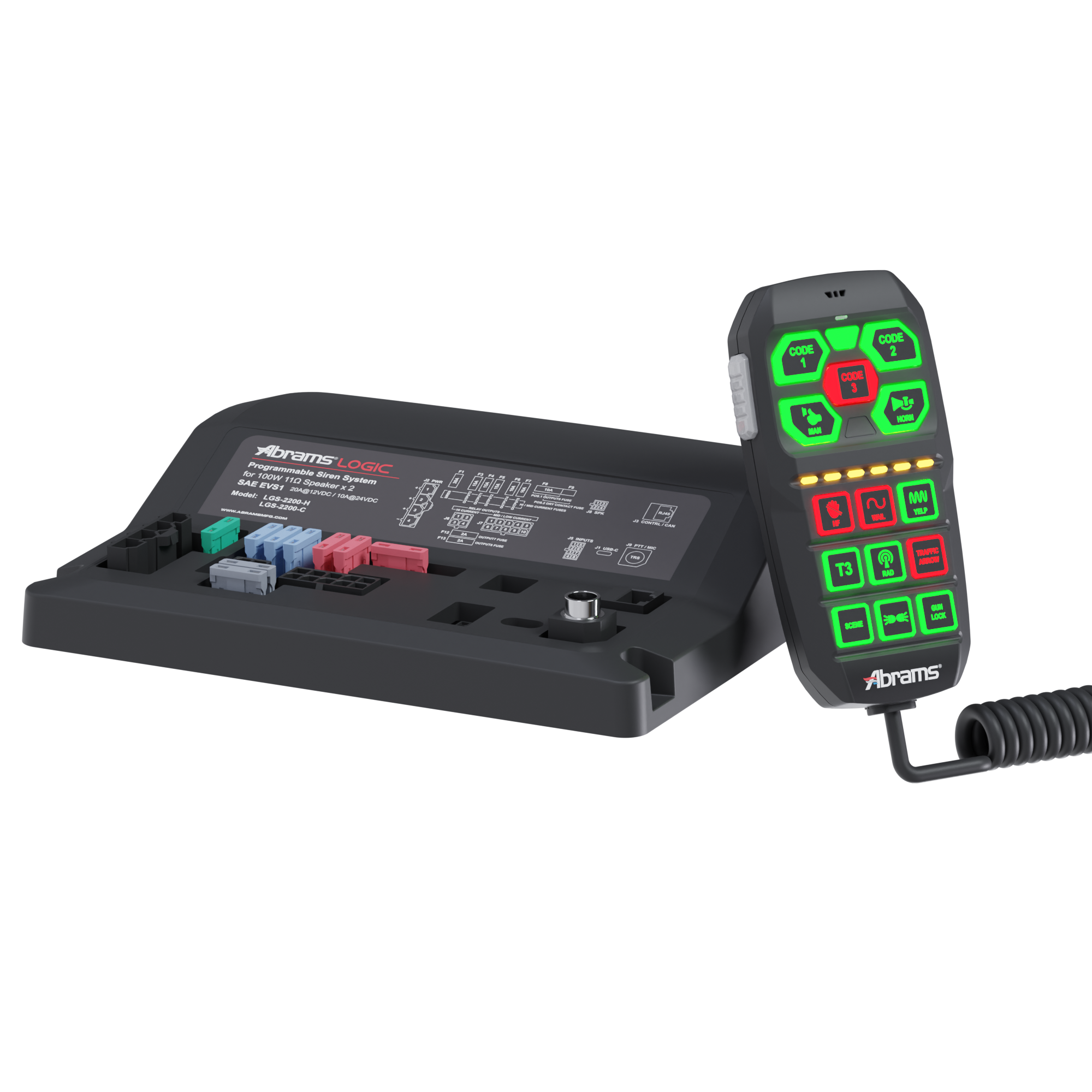

Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller

Abrams Logic 2200 Programmable Handheld Siren System & Light Controller

SKU: LGS-2200-H
Availability: Many In Stock
Product Type: Sound & Alert Systems
$847.50
$847.50
Subtotal:
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

Abrams Logic 2200 Programmable Handheld Siren System & Light Controller

Abrams Logic 2200 Programmable Handheld Siren System & Light Controller

$847.50
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller
Abrams Logic 2200 Programmable Handheld Siren System & Light Controller

Abrams Logic 2200 Programmable Handheld Siren System & Light Controller

$847.50
Description

Programmable Siren & Light Control System



Product Overview

  • 200W compact siren system.
  • 12 Relay output + 1 dry contact relay output.
  • Fully Programmable with PC software.
  • Integrated 15 buttons handheld controller.
Download UI

Features

  • Fully programmable and customizable configuration with PC software:
    • Button & Input style: On/Off, Momentary, Timer, etc.
    • Button Interlink, Interlock & Output port.
    • Tone selection: Primary, Override, Dual Tone, Hand-free Tone.
    • Multi-press function.

  • 15-Button Hand-held Controller:
    • Built-in Mic, Button buzzer, 6-Traffic Arrow indicator LEDs, and power magnet mounting mechanism.

  • 12 Relay Outputs:
    • 3x 15A, 3x 10A, 2x 2A, 4x 0.25A and 1 dry contact relay output.

  • 4 positive or negative activated Logic Inputs and 1 voltage-variable Analogue Input.
  • 12~24VDC multi-voltage.
  • Multi-voltage Class D amplifiers generate an incredibly clean, crisp tone with low amp draw.
  • Achieve optimum performance when paired with Abrams 100 Watt Siren Speaker.
  • 200W amplifier supports one or two 100W speakers (11Ω).
  • Selectable tones include Wail, Yelp, Phaser (Piercer), Hi-Lo, Mechanical, 30+ Programmable Tones.
  • Heavy-duty power and output connectors with easily accessible fuses.
  • Radio Re-Broadcasting (RRB) for an audio replay.
  • "Record-n-Play" function: Record instant replayable messages for up to 20 seconds.
  • The “Dual Tone” function allows each speaker for a Multi-Speaker Effect.
  • Voltage detection, programmable for auto low voltage protection.

Specifications

  • Compliance: SAE J1849 EVS1, ECE R10, CISPR 25
  • Input Voltage: 12-24 VDC
  • Standby Current: 0 MA (w/o IGN wire) / <0.35A (w/IGN wire)
  • Avg. Current: 8.5A @ 12VDC / 4A @ 24VDC
  • Max. Current: 20A @ 12VDC / 10A @ 24VDC (w/o light control outputs)
  • 100A @ 12VDC / 50A @ 24VDC (w/o light control outputs)
  • Siren Output Power: 200W (100W Speakerx2) 11
  • Siren Output Load: 100W-ACR (11Ω)
  • Siren Frequency: varies between tones
  • Operating Temp: -30°C to 65°C
  • Input/Output:
    • Power
    • IGN (Ignition)
    • High Current Output x3
    • Logic Input x4
    • Radio Audio Input
    • Controller Port
    • Speaker Output x2 set
    • Mid/Low Current Output x9
    • Voltage-variable Analog Input x1
    • Microphone TRS (optional)
    • PC Link USB Port
  • Light Controls: (3) 15A, (3) 10A, (2) 2A, (4) 0.25A light control outputs
  • Fuse Ratings:
    • Blade Fuse: 30A x1, 15A x3, 2A x2, 0.25A x4
    • Resettable Fuse: (4) 0.25A
  • Cable Lengths: Connector Harness x5: 11.8″, RJ45 Cable: 13.1′
