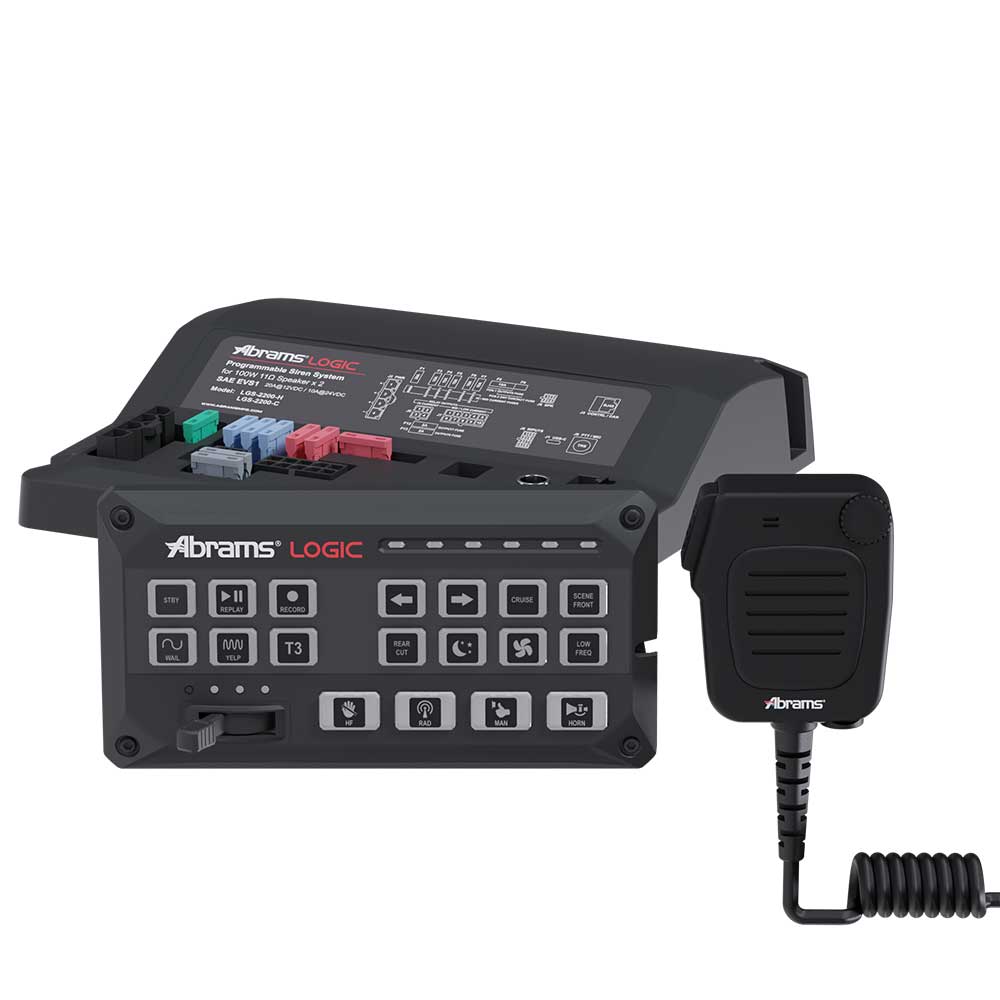

Abrams Logic 2200 Programmable Console Siren System & Light Controller

Programmable Siren & Light Control System



• 200W compact siren system.

• 12 Relay output + 1 dry contact relay output.

• Fully Programmable with PC software.

• Integrated 19 buttons Console Mount controller.


Download UI
Features:



• Fully programmable/customizable via PC software:

- Button & Input style: Sustained, Momentary, Timed, etc.

- Button Interlink, Interlock & Output port.

- Tone selection: Primary, Override, Dual Tone, Hands-free tones

- Multi-press functions

• 19 button console mount controller w/ 4 position slide panel, detachable hand-held microphone, button buzzer, 6 LED traffic arrow indicator & (1) hidden button.

• 12 Outputs: (3) 15A, (3) 10A, (2) 2A, (4) 0.25A) and (1) dry contact relay output.

• 4 Positive or negative activated logic inputs and 1 voltage variable analog input.

• 12~24VDC multi-voltage

• Multi-voltage Class D amplifiers generate an incredibly clean, crisp tone with low amp draw.

• Achieve optimum performance when paired with Abrams 100 Watt Siren Speaker

• 200W amplifier supports one or two 100W speakers (11Ω).

• Adjustable back-lighting (bright/dim)

• Selectable tones: Wail, Yelp, Phaser / Piercer, Hi-Lo, Mechanical, European tones, etc.

• Heavy-duty power and output connector blocks and cables/wires, with easily accessible fuses.

• Radio RE-Broadcast (RRB) for audio replay.

• Record-n-Play: Record instantly replayable messages (up to 20 seconds).

• Programmable voltage detection protects from low-voltage events

• The “Dual Tone” function allows a multi-tone / multi-speaker effect.

• Voltage detection: Programmable for automatic low-voltage protection.



Specifications:



Compliance: SAE J1849 EVS1, ECE R10, CISPR 25

Input Voltage: 12-24 VDC

Standby Current: 0 MA (w/o IGN wire) / <0.35A (w/IGN wire)

Avg. Current: 8.5A @ 12VDC / 4A @ 24VDC

Max. Current: 20A @ 12VDC / 10A @ 24VDC (w/o light control outputs)

100A @ 12VDC / 50A @ 24VDC (w/o light control outputs)

Siren Output Power: 200W (100W Speakerx2) 11

Siren Output Load: 100W-ACR (11Ω)

Siren Frequency: varies between tones

Operating Temp: -30oC to 65oC

Input/Output:

• Power

• IGN (Ignition)

• High Current Output x3

• Logic Input x4

• Radio Audio Input

• Controller Port

• Speaker Output x2 set

• Mid/Low Current Output x9

• Voltage-variable Analog Input x1

• Microphone TRS (optional)

• PC Link USB Port

Light Controls: (3) 15A, (3) 10A, (2) 2A, (4) 0.25A light control outputs

Fuse Ratings: Blade Fuse: 30A x1, 15A x3, 2A x2, 0.25A x4

Resettable Fuse: (4) 0.25A

Cable Lengths: Connector Harness x5 : 11.8″

RJ45 Cable: 13.1′
